Product Details:
|
Width: | 600-1500mm | Standard: | ASTM,AISI,GB,JIS,DIN |
---|---|---|---|
Zinc Coating: | 30-275g/m2 | Application: | Roofing,Decor,Flange Plate,commercial Use,Forming |
Technique: | Cold Rolled,Hot Rolled | Surface Treatment: | Coated,Galvanized |
Spangle: | Mini,Normal,Reuglar Spangle,Minimized,Zero | Surface: | Galvanized Coated,chromated,chromated And Oiled |
Thickness: | 0.12-4.0 | Shape: | Flat.sheet,Rolled |
Product Name: | Galvanized Steel Coil | Material: | SGCC/CGCC/DX51D+Z,ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 |
High Light: | 1500mm Hot Rolled Galvanized Steel Coil,600mm Hot Rolled Galvanized Steel Coil,PPGI GL PPGL Steel Coil |

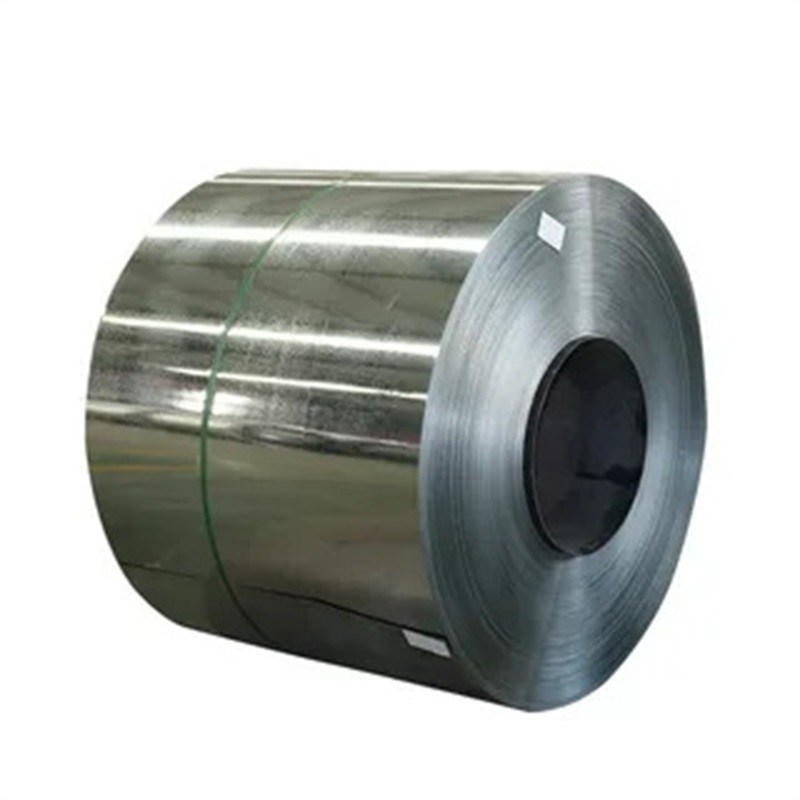

Galvanized Steel Sheet Coil Hot Rolled GI PPGI GL PPGL Coated Steel Coil
Product Description
Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc.
Product Details:
Product Parameter
Standard | astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc |
Grade | DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc |
Thickness | 0.12-3.0mm (customize, above 3.0mm available) |
Width | 600-2000mm (customize) |
Length | as customer requirements |
Coil inner diameter | 508mm/610mm (customize) |
Zinc coating | 20-600g/m2 |
Raw material | cold rolled base. (hot rolled base also available) |
Technique | hot dipped. (electro also available) |
Coil weight | 3-8 tons |
Tolerance | thickness +- 0.02 or +- 0.04, width +-5mm |
Spangle type | zero spangle, small spangle, regular spangle, big spangle |
Surface treatment | chromated/non-chromated, oiled/non-oiled, anti-fingerprints |
Certification | CE, ISO9001-2008, SGS |
Monthly output | 17000 tons |
Packaging |
3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside |
Landing port | qingdao/shanghai/tianjin port |
Payment terms | T/T, L/C, western union paypal etc |
Delivery time |
it takes about 3-5 days for stock goods, or it will need 14 days if goods need to be customized |
MOQ | as customer needs. reminder: more quantity reduce your purchase cost greatly |
Inspection | third-party test |
Cooperate brand | anshan steel, baotou steel, jiangsu shagang etc |
Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
DX52D+Z | 140-300 | 270-420 | >=22 | |
DX53D+Z | 140-260 | 270-380 | >=26 | |
DX54D+Z | 140-220 | 270-350 | >=30 | |
Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
S250GD+Z | >=250 | >=330 | >=17 | |
S280GD+Z | >=280 | >=360 | >=16 | |
S320GD+Z | >=320 | >=390 | >=15 | |
S350GD+Z | >=350 | >=420 | >=14 | |
S400GD+Z | >=400 | >=470 | ~ | |
S500GD+Z | >=500 | >=530 | ~ | |
S550GD+Z | >=550 | >=560 | ~ |
Application
1. Fence, greenhouse, door pipe,greenhouse
2. Low pressure liquid, water, gas, oil, line pipe
3. For both indoor and outdoor the building construction
4. Widely used in scaffolding construction which is much cheaper and convenient
Packing and Transportation
According to customer demand
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
