Product Details:
|
| Width: | 600-1500mm | Standard: | ASTM,AISI,GB,JIS,DIN |
|---|---|---|---|
| Zinc Coating: | 30-275g/m2 | Application: | Roofing,Decor,Flange Plate,commercial Use,Forming |
| Technique: | Cold Rolled,Hot Rolled | Surface Treatment: | Coated,Galvanized |
| Spangle: | Mini,Normal,Reuglar Spangle,Minimized,Zero | Surface: | Galvanized Coated,chromated,chromated And Oiled |
| Thickness: | 0.12-4.0 | Shape: | Flat.sheet,Rolled |
| Product Name: | Galvanized Steel Coil | Material: | SGCC/CGCC/DX51D+Z,ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 |
| High Light: | Z275g Prime Hot Rolled Steel Coils,Z150g Prime Hot Rolled Steel Coils,Z40g Hot Dipped Galvanised Coil |
||

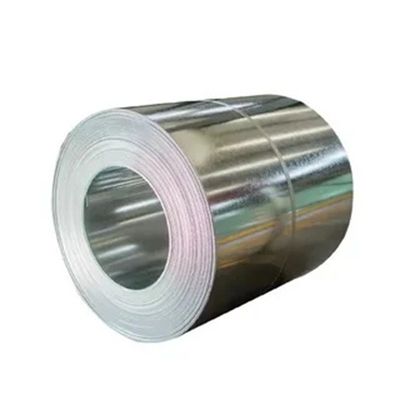

Hot Dip Galvanized Steel Coil Z40g Z150g Z275g Prime Hot Rolled Steel Coils
Product Description
The thin steel plate is immersed in the dissolved zinc bath so that its surface adheres to a thin steel plate. It is mainly produced by continuous galvanizing process, that is, the coiled steel plate is continuously immersed in the plating groove dissolved with zinc to make galvanized steel plate. This steel plate is also made by hot immersion, but after the groove, it is immediately heated to about 500 ℃, so that it generates an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weld ability.
Product Details:
Product Parameter
| Standard | astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc |
| Grade | DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc |
| Thickness | 0.12-3.0mm (customize, above 3.0mm available) |
| Width | 600-2000mm (customize) |
| Length | as customer requirements |
| Coil inner diameter | 508mm/610mm (customize) |
| Zinc coating | 20-600g/m2 |
| Raw material | cold rolled base. (hot rolled base also available) |
| Technique | hot dipped. (electro also available) |
| Coil weight | 3-8 tons |
| Tolerance | thickness +- 0.02 or +- 0.04, width +-5mm |
| Spangle type | zero spangle, small spangle, regular spangle, big spangle |
| Surface treatment | chromated/non-chromated, oiled/non-oiled, anti-fingerprints |
| Certification | CE, ISO9001-2008, SGS |
| Monthly output | 17000 tons |
| Packaging |
3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside |
| Landing port | qingdao/shanghai/tianjin port |
| Payment terms | T/T, L/C, western union paypal etc |
| Delivery time |
it takes about 3-5 days for stock goods, or it will need 14 days if goods need to be customized |
| MOQ | as customer needs. reminder: more quantity reduce your purchase cost greatly |
| Inspection | third-party test |
| Cooperate brand | anshan steel, baotou steel, jiangsu shagang etc |
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |
Application
Galvanized coil can be divided into hot rolled galvanized coil and cold rolled galvanized coil, they are mainly used in the construction of household appliances, car containers, transportation and other fields, especially steel structure construction, automobile manufacturing, steel warehouse manufacturing and other industries their characteristics are mainly: strong corrosion resistance, good surface quality, economic and practical.
Packing and Transportation
According to customer demand
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
