Product Details:
|
| Width: | 600-1500mm | Standard: | ASTM,AISI,GB,JIS,DIN |
|---|---|---|---|
| Zinc Coating: | 30-275g/m2 | Application: | Roofing,Decor,Flange Plate,commercial Use,Forming |
| Technique: | Cold Rolled,Hot Rolled | Surface Treatment: | Coated,Galvanized |
| Spangle: | Mini,Normal,Reuglar Spangle,Minimized,Zero | Surface: | Galvanized Coated,chromated,chromated And Oiled |
| Thickness: | 0.12-4.0 | Material: | SGCC/CGCC/DX51D+Z,ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 |
| Length: | Coil,Customer's Requirement | Special Use: | High-strength Steel Plate |
| High Light: | HRB60 Dx51d Z150 Galvanized Steel Coil,HRB60 Zinc Coated Steel Coil,EN10147 Zinc Coated Steel Coil |
||

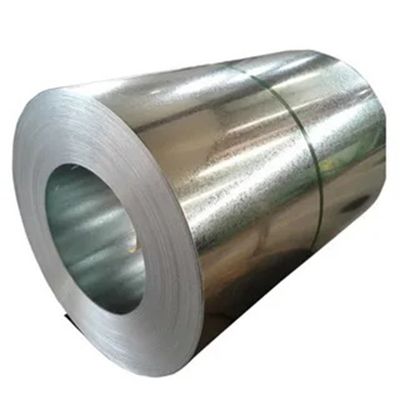

Galvanized Sheet Metal Coils DX51 Z30 Z40 Z150 Z275 Zinc Coated Galvanized Steel
Product Description
Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc's characteristics. Usually, hot-dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
Hot-dip galvanizing is the process of applying a protective zinc coating to a steel sheet or iron sheet, to prevent rusting.
Product Details:
Product Parameter
| Standard | astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc |
| Grade | DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc |
| Thickness | 0.12-3.0mm (customize, above 3.0mm available) |
| Width | 600-2000mm (customize) |
| Length | as customer requirements |
| Coil inner diameter | 508mm/610mm (customize) |
| Zinc coating | 20-600g/m2 |
| Raw material | cold rolled base. (hot rolled base also available) |
| Technique | hot dipped. (electro also available) |
| Coil weight | 3-8 tons |
| Tolerance | thickness +- 0.02 or +- 0.04, width +-5mm |
| Spangle type | zero spangle, small spangle, regular spangle, big spangle |
| Surface treatment | chromated/non-chromated, oiled/non-oiled, anti-fingerprints |
| Certification | CE, ISO9001-2008, SGS |
| Monthly output | 17000 tons |
| Packaging |
3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside |
| Landing port | qingdao/shanghai/tianjin port |
| Payment terms | T/T, L/C, western union paypal etc |
| Delivery time |
it takes about 3-5 days for stock goods, or it will need 14 days if goods need to be customized |
| MOQ | as customer needs. reminder: more quantity reduce your purchase cost greatly |
| Inspection | third-party test |
| Cooperate brand | anshan steel, baotou steel, jiangsu shagang etc |
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |
Application
Building & Construction:
Roofing; Terrace; Window Frame;
Door:
Rolling-up Door; Shutter; Mobile House;
Interior Decorations:
Wall; Door Frame; Steel Structure; Screen; Ceiling;Elevator;
Household Appliances:
Fridge; Washing Machine; Microwave Oven; Air-Conditioner; Duplicating Machine,etc;
Transportation:
Auto Panel; Interior Decorative Panel; Carriage Panel;
Packing and Transportation
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Contact Person: JK
