Product Details:
|
| Place Of Origin: | Shandong | Brand Name: | Shuangjiu |
|---|---|---|---|
| Thickness: | 1-10MM, As Required | Length: | 6m, OTHER, 12M, 6m |
| Outer Diameter: | 6 - 120 Mm, 6 - 120 Mm | Special Pipe: | API Pipe, Thick Wall Pipe |
| Tolerance: | ±1% | Delivery Time: | 7-14 Work Days |

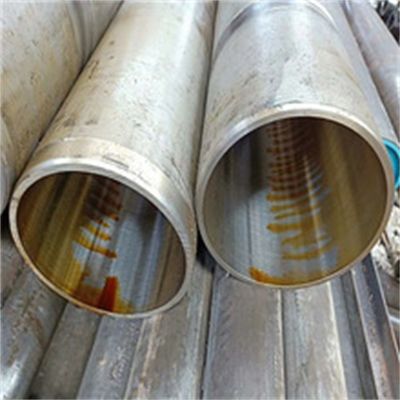

Carbon Steel Pipe Honed Pipe CK45 Hydraulic Cylinder Tube Honing Pipe Tube
Product description
Honing the cylinder pipe
The surface quality is good, the surface is cross mesh, which is conducive to the storage of lubricating oil and the maintenance of oil film. It has a higher surface support ratio (the actual contact area of the hole and the shaft and the ratio of the matching area between the two), so it can bear larger load and wear resistance, thus improving the service life of the product.
Product parameter
|
Type
|
Honed Pipe CK45 Hydraulic Cylinder Tube Honing Pipe Tube
|
|||
|
Materials
|
API 5L /A53 /A106 GRADE B and other material which client inquired
|
|||
|
Size
|
Outer Diameter
|
Seamless:17-914mm 3/8"-36"
|
||
|
Wall Thickness
|
SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80
SCH100 SCH120 SCH140 SCH160 XXS |
|||
|
Length
|
Single random length/Double random length
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request |
|||
|
Ends
|
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
|||
|
Surface Treatment
|
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating
|
|||
|
Technical Methods
|
Hot-rolled/Cold-drawn/Hot-expanded
|
|||
|
Testing Methods
|
Pressure test,Flaw detection,Eddy current testing, Hydro static testing or Ultrasonic examination and also with chemical and
physical property inspection |
|||
|
Packaging
|
Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven bags; Wooden cases;Suitable for lifting operation;Loaded in 20ft 40ft or 45ft container or in bulk; Also according to customer's requests
|
|||
|
Origin
|
China
|
|||
|
Application
|
Conveying oil gas and water
|
|||
|
Third Party Inspection
|
SGS BV MTC
|
|||
|
Trade Terms
|
FOB CIF CFR
|
|||
|
Payment Terms
|
FOB 30%T/T,70% before shipment
CIF 30% pre-payment and the balance to be paid before making shipment or Irrevocable 100% L/C at sight |
|||
|
MOQ
|
5tons
|
|||
|
Supply Capacity
|
5000 T/M
|
|||
|
OD
|
GB/T3639
|
DIN2391
(EN10305) |
Our Tolerance
|
Best Quality
|
|
|
31-40mm
|
±0.15mm
|
±0.15mm
|
±0.05mm
|
±0.03mm
|
|
|
41-50mm
|
±0.20mm
|
±0.20mm
|
±0.05mm
|
±0.03mm
|
|
|
51-60mm
|
±0.25mm
|
±0.25mm
|
±0.08mm
|
±0.03mm
|
|
|
61-70mm
|
±0.30mm
|
±0.30mm
|
±0.10mm
|
±0.05mm
|
|
|
71-160mm
|
±0.30mm
|
±0.30mm
|
±0.10mm
|
±0.05mm
|
|
|
160mm-230mm
|
±0.50mm
|
±0.50mm
|
±0.40mm
|
|
|
|
Tolerance in WT
|
±0.12mm
|
±0.10mm
|
±0.05mm
|
±0.03mm
|
|
|
PROCESS
|
|||||
|
Process
|
Diameter
|
Length
|
|
|
|
|
Cold Rolled
|
30-100mm
|
≤10 m
|
|
|
|
|
Cold Draw
|
30-250mm
|
≤10 m
|
|
|
|
|
Honing
|
40-500mm
|
≤10 m
|
|
|
|
|
Skived burnished
|
40-400mm
|
≤76m
|
|
|
|
|
HONED OR SRB TUBE TOLERANCE
|
|||||
|
Inner Diameter
|
H8
|
H9
|
H10
|
|
|
|
30mm
|
±0.033
|
±0.052
|
±0.084
|
5-30mm
|
|
|
30-50mm
|
±0.039
|
±0.062
|
±0.100
|
±0.080
|
|
|
50-80mm
|
±0.046
|
±0.074
|
±0.120
|
|
|
|
80-120mm
|
±0.054
|
±0.087
|
±0.140
|
|
|
|
120-180mm
|
±0.063
|
±0.100
|
±0.160
|
|
|
|
180-250mm
|
±0.072
|
±0.115
|
±0.185
|
|
|
|
250-315mm
|
±0.081
|
±0.130
|
±0.210
|
||
Product advantage
Cylinder pipe features
1. Smaller outside diameter.
2. Cold drawing products have high precision and good surface quality.
3. The cross area of the steel pipe is more complex.
4. The steel pipe has better performance and the metal is relatively dense
Product application
Honed tubes are widely used in hydraulic cylinders, cylinders, hydraulic machinery, engineering machinery, petroleum machinery, agricultural machinery, filling machinery, mining machinery and other fields.
.
FAQ
Q1.What is your terms of payment?
