Product Details:
|
Grade: | Q235 Q345 | Length: | 6m,12m,or Customer Requirement |
---|---|---|---|
Place Of Origin: | Shandong,China | Standard: | GB/ASTM/EN |
Material: | Q235 Q345 | Shape: | U Or C |
Processing: | Available | MOQ: | 5tons |
Packages: | Comply With Shipping Standards Or Customer Requirements | Tolerance: | ±1% |

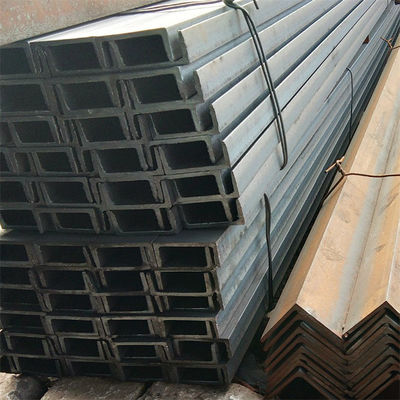

Channel Steel Beam Steel U Channel C Channel Q235 Q345 Hot Rolled Channel Steel For Building
Product description
Channel steel is a conventional production component that is generally manufactured from hot-rolled steel. It has a wide and flat surface and also has flanges at right angles on both sides. The outer edge of C channel steel is clearly angled and has radius corners. The channel steel offers durability, and its broad and flat surface is perfect for attaching items and offering support.
In its most widespread form, C channel steel is used to hold bridge decks and other heavy gadgets. This steel can absorb flex and other forces that can break more rigid I-beams and H-beams. Steel channel is a versatile product that is obtainable in various sizes and widths. Its cross-section is formed similarly to a squared-off C, which has a straight back and two vertical branches on the top and bottom. Some varieties of C-channel steel have short inward-facing edges to the end of the extensions, which makes the structure tougher. Other types of channel have holes for bolting purposes. Compared to other structural steel products, C channel steel is thinner and insignificantly flexible.
Product details
Product parameter
Grade | Q235 |
Length | Customer's Required |
Standard | GB,AISI,ASTM etc. |
Technique | Cold bend |
Surface Treatment | Clean, blasting and painting according to customer requirement |
Thickness | 6mm |
Application | Steel channels — either C-shaped or U-shaped — can be used to replace I-joists that may not be structurally sound. They offer better support and allow for more uniform weight distribution, especially when the roofing load may create pressure on the ceiling. |
MOQ | 5tons. |
Shipment time | Within 5-8 workdays after receiving deposit |
Capacity |
50000 tons/month
|
Tolerance | ±1% |
Theoretical weight reference
Specifications
|
Height
(mm)
|
Leg width
(mm)
|
Waist thickness
(mm)
|
Cross-sectional area
(cm²)
|
Theoretical weight
(kg)
|
5#
|
50
|
37
|
4.5
|
6.928
|
5.438
|
6.3#
|
63
|
40
|
4.8
|
8.451
|
6.634
|
6.5#
|
65
|
40
|
4.3
|
6.709
|
|
8#
|
80
|
43
|
5.0
|
10.248
|
8.045
|
10#
|
100
|
48
|
5.3
|
12.748
|
10.007
|
12#
|
120
|
53
|
5.5
|
12.059
|
|
12.6
|
126
|
53
|
5.5
|
15.692
|
12.319
|
14#a
|
140
|
58
|
6.0
|
18.516
|
14.535
|
14#b
|
140
|
60
|
8
|
21.316
|
16.733
|
16#a
|
160
|
63
|
6.5
|
21.962
|
17.24
|
16#b
|
160
|
65
|
8.5
|
25.162
|
19.752
|
18#a
|
180
|
68
|
7
|
25.699
|
20.174
|
18#b
|
180
|
70
|
9
|
29.299
|
23
|
20#a
|
200
|
73
|
7
|
28.837
|
22.637
|
20#b
|
200
|
75
|
9
|
32.837
|
25.777
|
22#a
|
220
|
77
|
7
|
31.846
|
24.999
|
22#b
|
220
|
79
|
9
|
36.246
|
28.453
|
25#a
|
250
|
78
|
7
|
34.917
|
27.41
|
25#b
|
250
|
80
|
9
|
39.917
|
31.335
|
25#c
|
250
|
82
|
11
|
44.917
|
35.26
|
28#a
|
280
|
82
|
7.5
|
40.034
|
31.427
|
28#b
|
280
|
84
|
9.5
|
45.634
|
35.832
|
28#c
|
280
|
86
|
11.5
|
51.234
|
40.219
|
30#a
|
300
|
85
|
7.5
|
34.463
|
|
30#b
|
300
|
87
|
9.5
|
39.173
|
|
30#c
|
300
|
89
|
11.5
|
43.883
|
|
32#a
|
320
|
88
|
8
|
48.513
|
38.083
|
32#b
|
320
|
90
|
10
|
54.913
|
43.107
|
32#c
|
320
|
92
|
12
|
61.313
|
48.131
|
36#a
|
360
|
96
|
9
|
60.910
|
47.814
|
36#b
|
360
|
98
|
11
|
68.110
|
53.466
|
36#c
|
360
|
100
|
13
|
75.310
|
59.118
|
40#a
|
400
|
100
|
10.5
|
75.068
|
58.928
|
40#b
|
400
|
102
|
12.5
|
83.068
|
65.208
|
40#c
|
400
|
104
|
14.5
|
91.068
|
71.488
|
Why you choose us?
We are manufacturers, product price advantage, quality assured.
We have perfect production equipment, strong production strength, timely completion of each order.
The company aims to operate in good faith to meet customer needs product specifications and sizes are customized.
Perfect after-sales service, excellent product quality, choose us at ease.
Application
C-channel steel comes in a variety of dimensions and thicknesses. Hence it is widely used in many industrial applications. One of the most common applications of this channel steel is for frame supports in automotive manufacturing. The pieces of this channel steel are joined together to form a box-like structure. They can be joined with broad and flat surfaces to produce an I-beam. The versatility of the C channel structure empowers productions to be more productive as compared with I-beams and other steel components. The C channel steel also makes different structures comparatively lightweight. It also ensures strength and rigidity for machinery frames and various manufacturing applications.
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6:Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
