Product Details:
|
| Place Of Origin: | Shandong, China | Technique: | Hot Rolled |
|---|---|---|---|
| Thickness: | 3-25mm | Length: | Customer's Required |
| Side Length: | 20-200mm | Tolerance: | ±1% |
| Packages: | Packing Standard | MOQ: | 5tons |
| Specifications: | 20*3-200*25mm | Material: | Q195 Q215 Q235 Q255 Q275 |
| High Light: | 25mm Structural Angle Steel,3mm Structural Angle Steel Q195,Q215 Equal Leg Angle Steel |
||

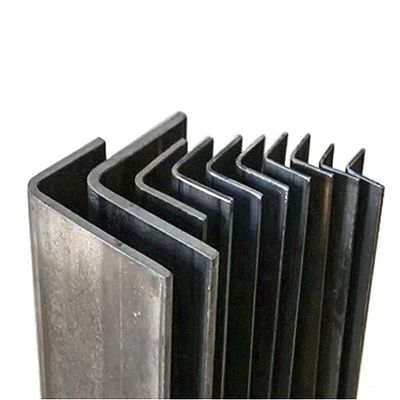

3-25mm Structural Angle Steel Q195 Q215 Q235 Q255 Q275 Mild Carbon Equal Leg Angle Steel
Product description
Steel Angle is essentially 'steel shape' with low carbon that is hot rolled. It is the most popular among all steel shapes. It is angled at 90° which makes it a strong and sturdy product that is used for various applications. Steel Angles have a bar shape.
Product details
Product parameter
| Grade | Q195 Q215 Q235 Q255 Q275 |
|
Length
|
6-12m or Customer's Required
|
|
Standard
|
GB,EN,AISI,ASTM etc.
|
|
Technique
|
Hot rolled
|
|
Surface Treatment
|
Clean, blasting and painting according to customer requirement
|
|
Thickness tolerance
|
±0.1mm
|
|
Application
|
Angle steel is widely used in the manufacture of frames, fabrications, shelves, brackets, vehicle building, construction, and maintenance. Structural usage of Steel Angles is maximum compared to any other sector. Examples include riveted, bolted, or welded construction of buildings, bridges, machinery etc. |
|
MOQ
|
5tons.
|
|
Shipment time
|
Within 5-8 workdays after receiving deposit
|
|
Capacity |
50000 tons/month
|
| Size | 20*3-200*25mm |
Theoretical weight
|
Specifications
|
KG/M
|
Specifications
|
KG/M
|
Specifications
|
KG/M
|
Specifications
|
KG/M
|
|
20X20X3
|
0.889
|
60X60X5
|
4.570
|
90X90X8
|
10.946
|
130X130X12
|
23.600
|
|
20X20X4
|
1.145
|
60X60X6
|
5.427
|
90X90X9
|
12.220
|
130X130X13
|
25.400
|
|
25X25X2
|
0.763
|
63X63X4
|
3.907
|
90X90X10
|
13.476
|
130X130X14
|
27.200
|
|
25X25X3
|
1.124
|
63X63X5
|
4.822
|
90X90X15
|
15.940
|
130X130X16
|
30.900
|
|
25X25X4
|
1.459
|
63X63X6
|
5.721
|
100X100X6
|
9.366
|
140X140X10
|
21.488
|
|
30X30X2
|
0.922
|
63X63X8
|
7.469
|
100X100X7
|
10.830
|
140X140X12
|
25.522
|
|
30X30X3
|
1.373
|
63X63X10
|
9.151
|
100X100X8
|
12.276
|
140X140X14
|
29.490
|
|
30X30X4
|
1.786
|
70X70X4
|
4.372
|
100X100X10
|
15.120
|
140X140X15
|
31.451
|
|
36X36X3
|
1.656
|
70X70X5
|
5.397
|
100X100X12
|
17.898
|
140X140X16
|
33.393
|
|
36X36X4
|
2.163
|
70X70X6
|
6.406
|
100X100X14
|
20.611
|
160X160X10
|
24.729
|
|
36X36X5
|
2.654
|
70X70X7
|
7.398
|
100X100X16
|
23.257
|
160X160X12
|
29.391
|
|
40X40X3
|
1.852
|
70X70X8
|
8.373
|
110X110X7
|
11.928
|
160X160X14
|
33.987
|
|
40X40X4
|
2.422
|
75X75X5
|
5.818
|
110X110X8
|
13.532
|
160X160X16
|
38.518
|
|
40X40X5
|
2.976
|
75X75X6
|
6.905
|
110X110X10
|
16.690
|
175X175X12
|
31.800
|
|
45X45X4
|
2.736
|
75X75X7
|
7.976
|
110X110X12
|
19.782
|
175X175X15
|
39.400
|
|
45X45X5
|
3.369
|
75X75X8
|
9.030
|
110X110X14
|
22.809
|
180X180X12
|
33.159
|
|
45X45X6
|
3.985
|
75X75X9
|
10.065
|
120X120X8
|
14.88
|
180X180X14
|
38.383
|
|
50X50X3
|
2.332
|
75X75X10
|
11.089
|
120X120X10
|
18.37
|
180X180X16
|
43.542
|
|
50X50X4
|
3.059
|
80X80X5
|
6.211
|
120X120X12
|
21.666
|
180X180X18
|
48.634
|
|
50X50X5
|
3.770
|
80X80X6
|
7.376
|
125X125X8
|
15.504
|
200X200X14
|
42.894
|
|
50X50X6
|
4.465
|
80X80X7
|
8.525
|
125X125X10
|
19.133
|
200X200X16
|
48.680
|
|
56X56X3
|
2.624
|
80X80X8
|
9.658
|
125X125X12
|
22.696
|
200X200X18
|
54.401
|
|
56X56X4
|
3.446
|
80X80X10
|
11.874
|
125X125X14
|
26.193
|
200X200X20
|
60.056
|
|
56X56X5
|
4.251
|
90X90X6
|
8.350
|
125X125X15
|
29.918
|
200X200X24
|
71.168
|
|
56X56X8
|
6.568
|
90X90X7
|
9.656
|
130X130X10
|
19.800
|
200X200X25
|
73.600
|
Application
Some uses of the Steel Angles are in the manufacture of frames, fabrications, shelves, brackets, vehicle building, construction, and maintenance. Structural usage of Steel Angles is maximum compared to any other sector. Examples include riveted, bolted, or welded construction of buildings, bridges, machinery etc.
Packing and transportation
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6:Can we get the some samples?Any charges?
A: Yes , we could offer the sample for free charge but do not pay the cost of freight . If you place the order after confirm the sample , we will refund your express freight or deducte it from the order amount.
Q7: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
Why choose us?
We are manufacturers, product price advantage, quality assured.
We have perfect production equipment, strong production strength, timely completion of each order.
The company aims to operate in good faith to meet customer needs product specifications and sizes are customized.
Perfect after-sales service, excellent product quality, choose us at ease.
